SPT22Z Smart Pressure Transmitter
Features
- Aluminum-alloy electronic housing; protection IP65;
- Reversed signal polarity; moment overcurrent,overvoltage, interference protection;
- Optional signal output;
- Gauge, absolute and sealed gauge optional
- Offset and full scale adjustable
- LCD indicator optional
- Stainless steel material contacting with the media; flush diaphragm and tantalum diaphragm optional;
Introduction
The product uses piezoresistive OEM pressure sensor as sensing element, which is accurate tested and laser trimmed to compensated zero and sensitivity in wider temperature range. The amplifier circuit transforms sensor signal into standard output signal. Through long-term aging and stability testing, the whole product’s performance is stable and reliable. The product is suitable for rugged environment which needs zero elevation and range adjustment, could be widely used for process control and pressure measure of petroleum, chemi-industry, metallurgy, power station, textile industry, building material, hydrology and environment control, etc.
Specification
| Pressure range | -0.1…0～0.01…100MPa (-1…0~0.1…1000bar) |
| Over pressure | 1.5 times FS or 110MPa (min. value is valid) |
| Pressure type | Gauge/absolute/sealed gauge optional |
| Process connection | G1/2 male thread (or as per customer’s requirement) |
| Accuracy | ±0.1％FS ±0.2％FS optional |
| Indicator | 4 digit LCD |
| Display range | -1999~9999 |
| Compensated temp. | 0~50℃ |
| Environment temp. | -20~70℃ |
| Power supply | 18~36VDC |
| Output signal | 4~20mADC(2 wires)/RS485 |
| Housing protection | IP65 |
| Electrical connection | Cable gland |
Construction and Outline Dimension
Construction material:
♦Housing: Aluminum-alloy
♦Pressure port: SS304 or SS316L optional
♦Diaphragm: SS316L
♦Sealing gasket: Viton
♦Cable gland: Plastic

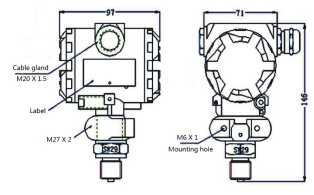

Outline dimension: Electrical Connection:

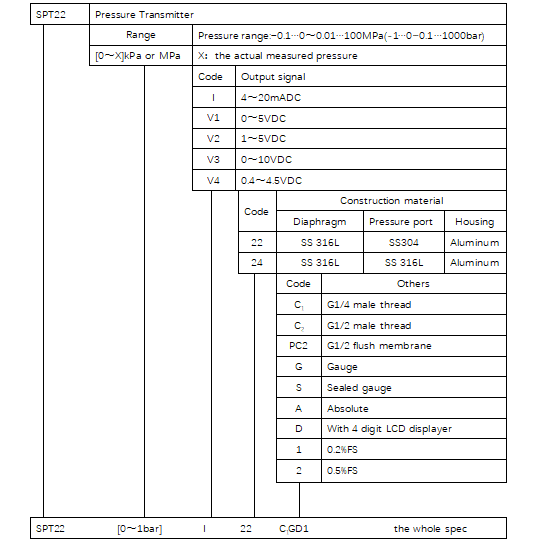

Order Information
Note:
1. Please pay attention that the media should be compatible with the contacted parts;
2. If any special requirements on function or specification, please contact with us freely;
FAQ
Q: What detailed information do I need to provide if I want to place an order?
A: We need to know the following information: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
Q: Can you provide calibration report of Air Compressor Pressure Transducer?
A: Yes, the sensor can provide calibration report.
Q: Can you accept OEM brand?
A: Yes, we can accept OEM brand without extra charge.
Q: Can you offer samples?
A:Yes, you can apply for sample testing.
